Costs in Task Form combined with Gantt Chart View in MS PROJECT 2016

Hi,

Task Form is very useful thing in MS PROJECT 2016, and it can be use in various ways. Today I’ll show how to see Costs for Task per Resource.

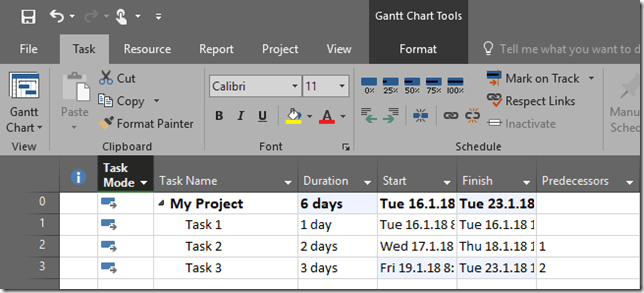

First I will create simple new Project:

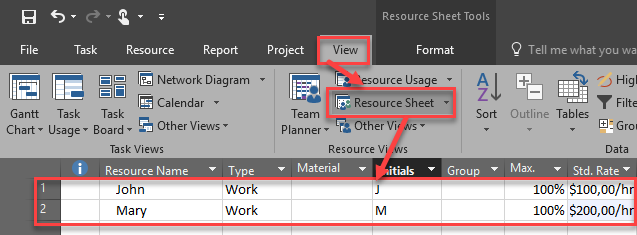

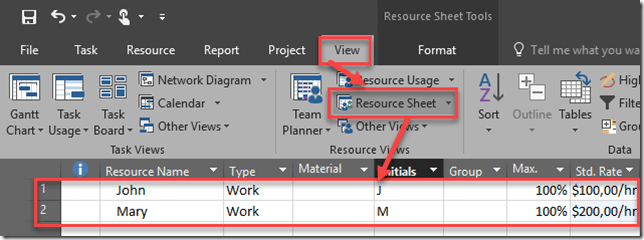

Now I Will crate two Resources: John and Mary:


Now I will assign John to Task 1, Mary to Task 2, and both of them to Task 3:

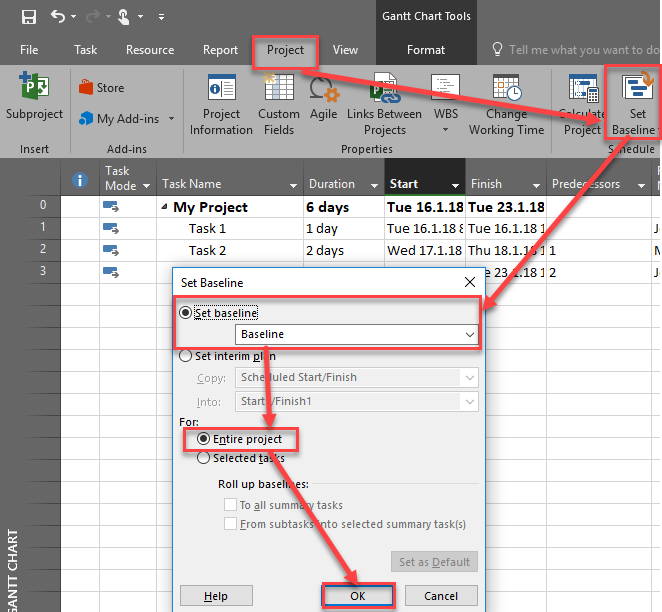

Finally, I will going to save the Baseline:

SNAGHTML47a47c6d

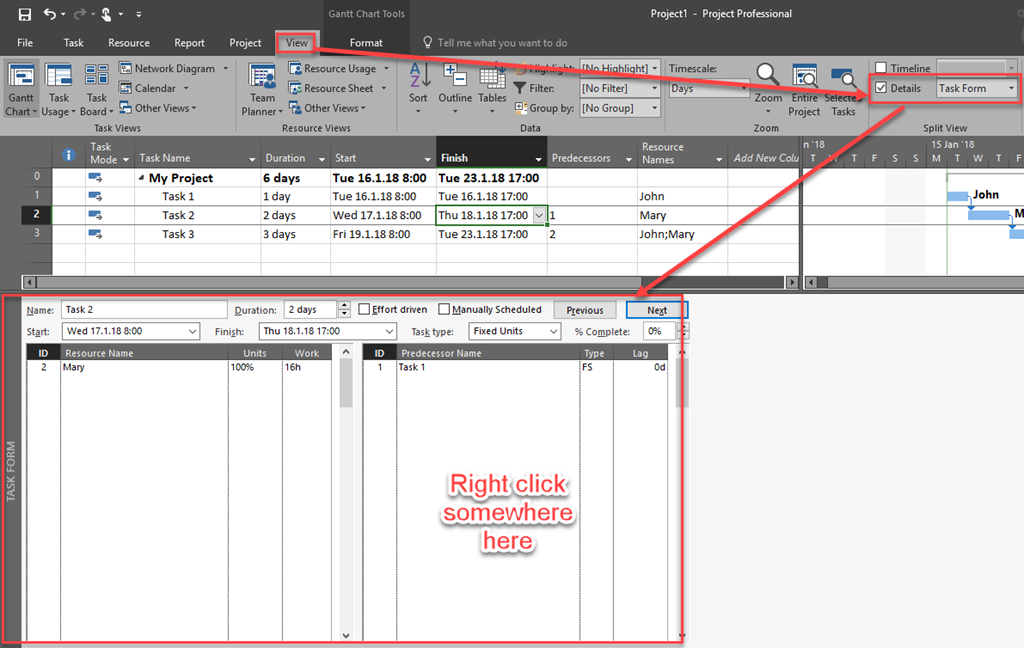

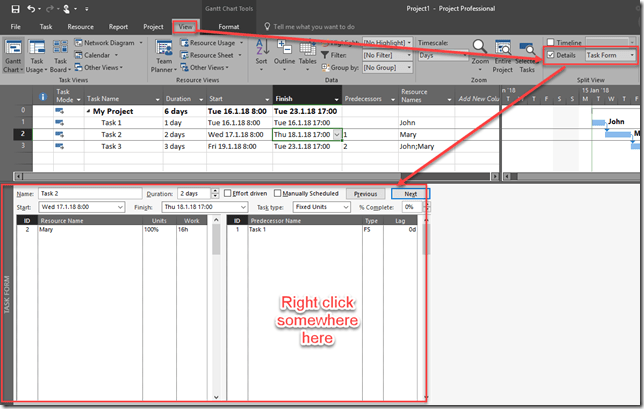

Now I will turn on Task Form:

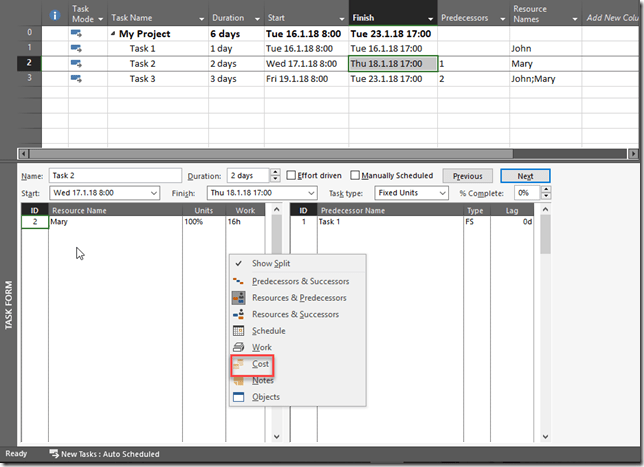

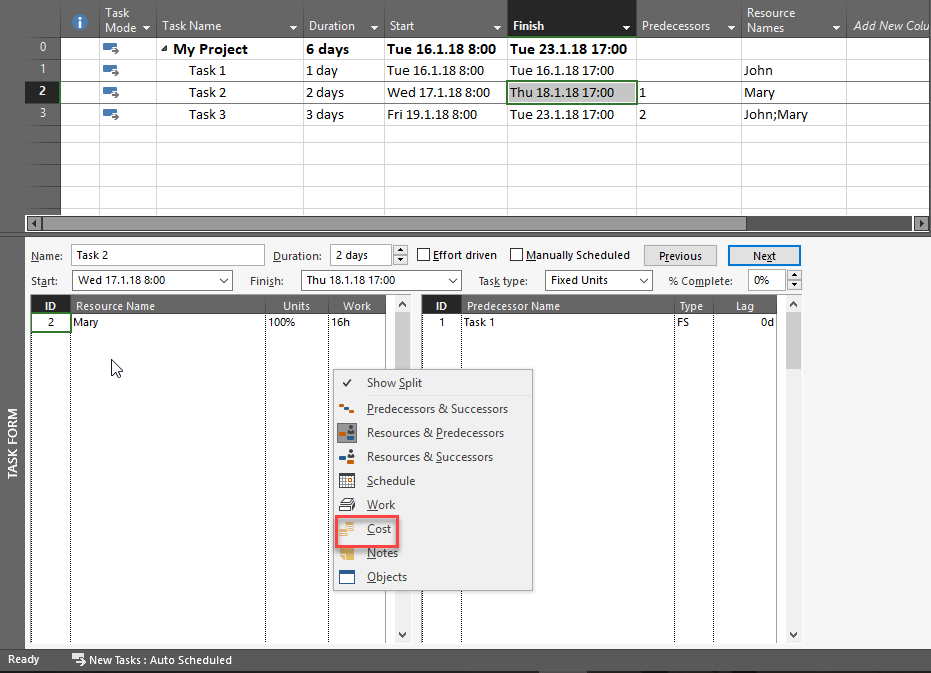

and then:


and I will get:


As you can see, when I select Task 3 (for example), I can see Total Cost and Total Baseline cost for the whole Task (Two Columns in Gant Chart View, which I added on purpose), and in the Task Form I can see Total Cost, Total Baseline Cost, and Actual cost for Resource for Task!.

Regards!
