How to setup complex Graphical Indicators with MS PROJECT 2016

Hi,

I can see on the forums that lot of MS PROJECT 2016 user have problem with graphical indicators. For example, they want to see Actual Work compared with base lined work, and see the status. OK, that is not so complicated. Let’s say that you want to compare Actual work with Baseline work in a way that:

  • If Actual work is equal or lower than Baseline work – you want a Green indicator
  • If Actual work is up to 20% higher than Baseline work – you want a Yellow indicator
  • If Actual work is more than 20% higher than Baseline work – you want a Red indicator

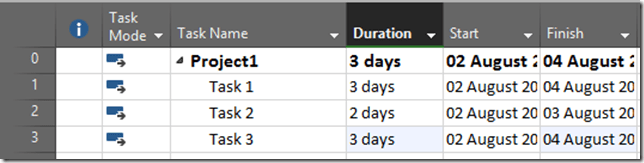

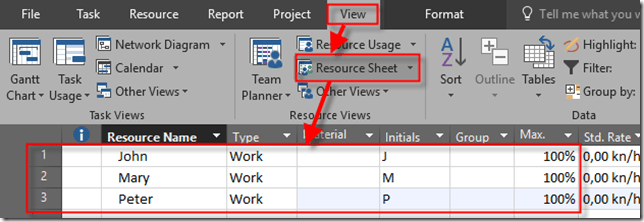

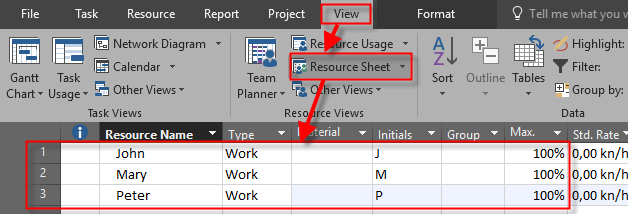

    Firs of all I am going to create Simple Project with three Tasks and three Resources:


    and:

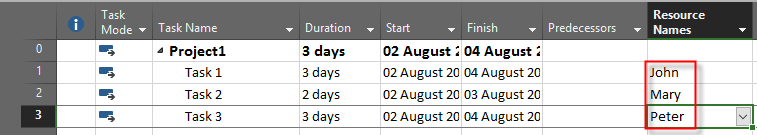

    Finally I’m going to assign them to Tasks:

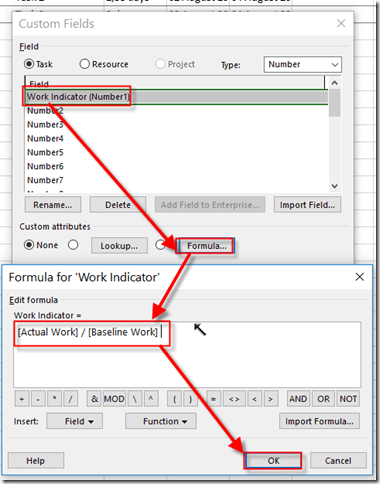

    Now I’m going to create one Custom field – Number:


    and then:

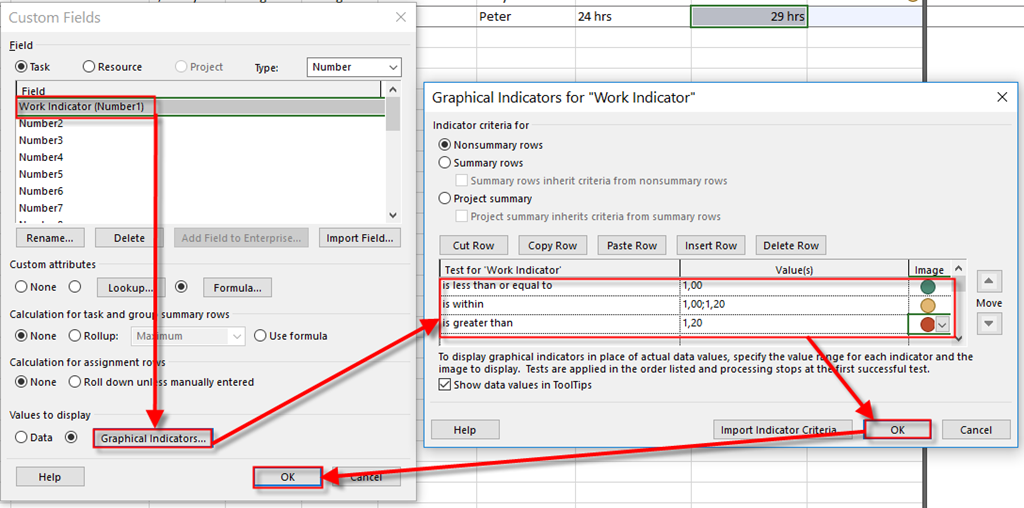

    and then:


    Now I’m going to save the Baseline:

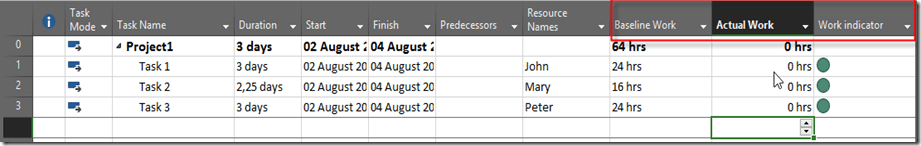

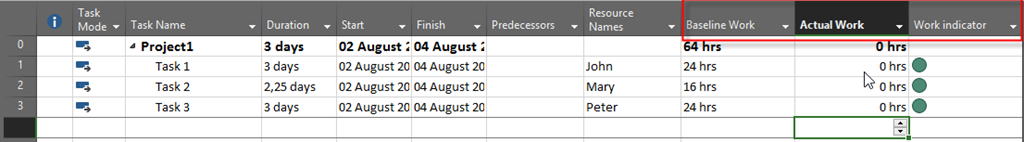

    and, finally I am going to include all relevant fields in Gantt Chart:


  • Now I’m going to put some Actual work:

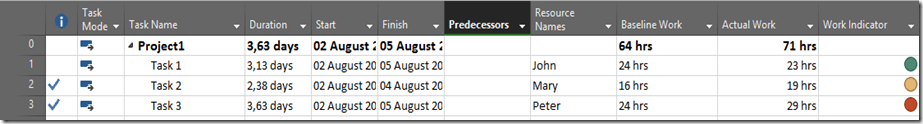

    As you can see, I’ve got what I want. Notice this little tip. If you put checkmark here:

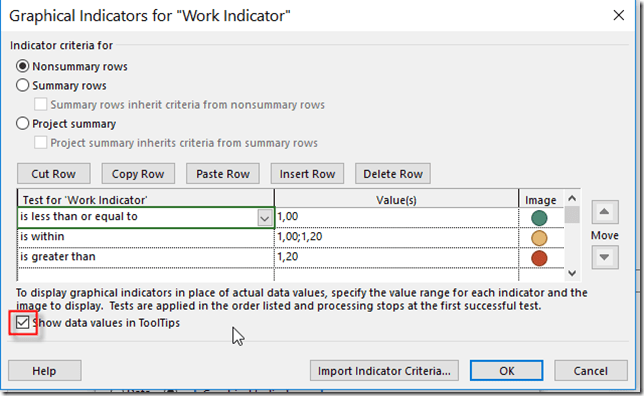

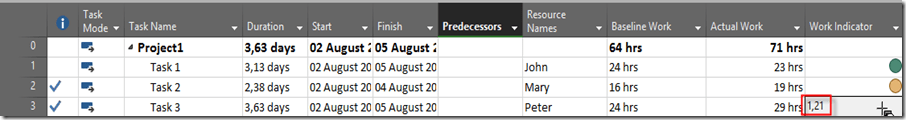

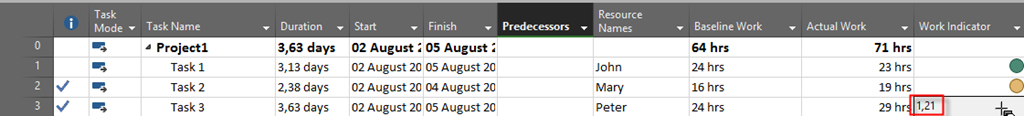

    and you hoover your mouse on the Graphic Indicator, you will se Value:


    With this you can see actual value of this custom field, and you can check if your formula works properly!

    Regards!
