Critical path in MS PROJECT 2010–PART 2



Hi,

In this post I will explain how to find The CRITICAL PATH in MS PROJECT 2010

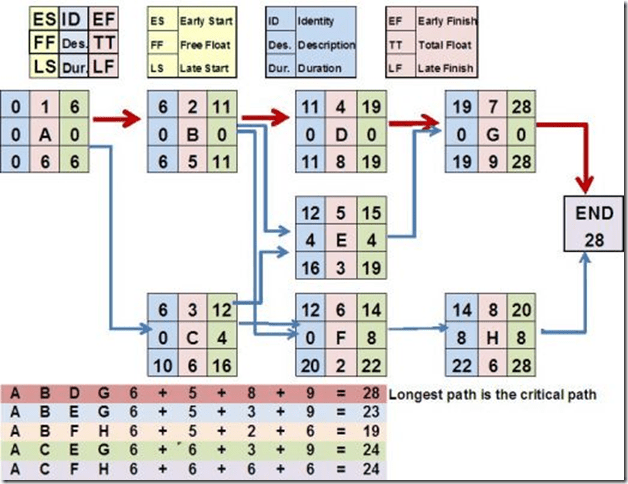

Here is an example from my previous blog:

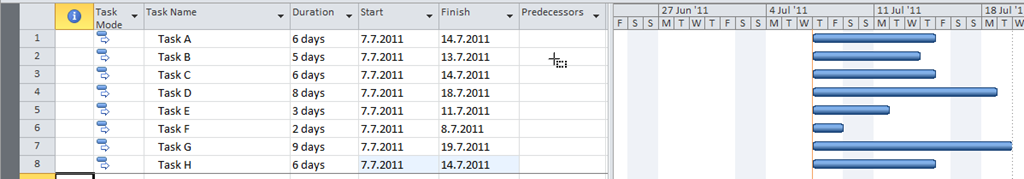

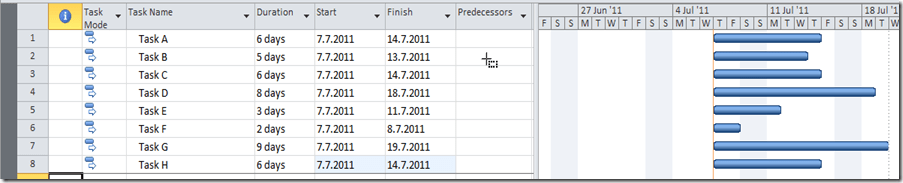

I will put those tasks and durations in MS PROJECT 2010:

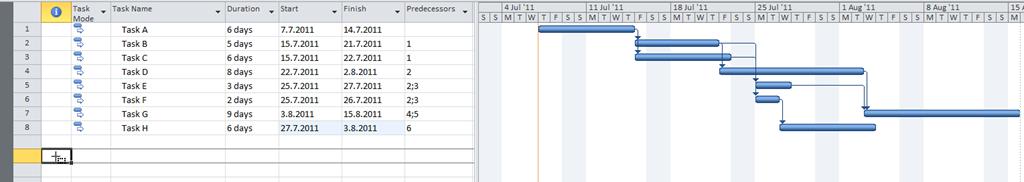

Now I will connect those tasks:


Task B and Task C have Task A as Predecessor, Task D has Task B as Predecessor, Task E and Task F have Task B and Task C as Predecessors, Task G has Task D and Task E as Predecessors, and Task H has Task G as Predecessor.

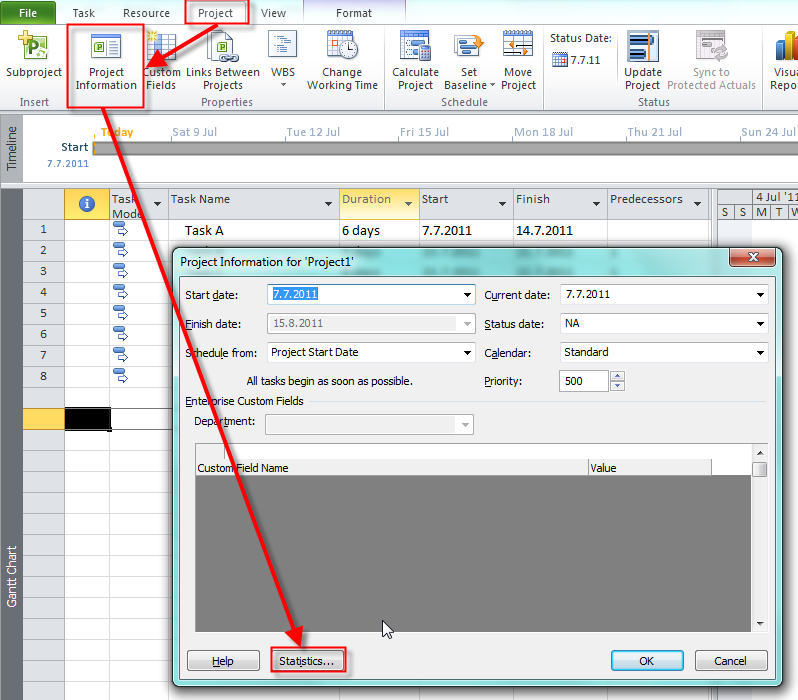

The project should have 28 days duration. I will check it:

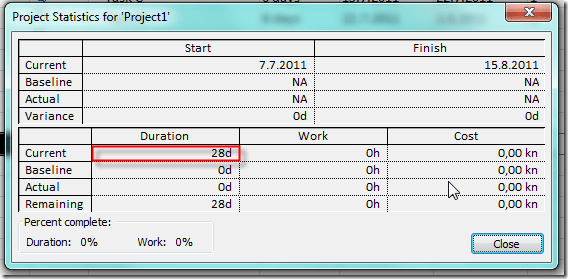

and I will get:


OK!

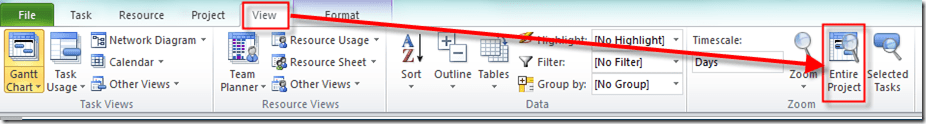

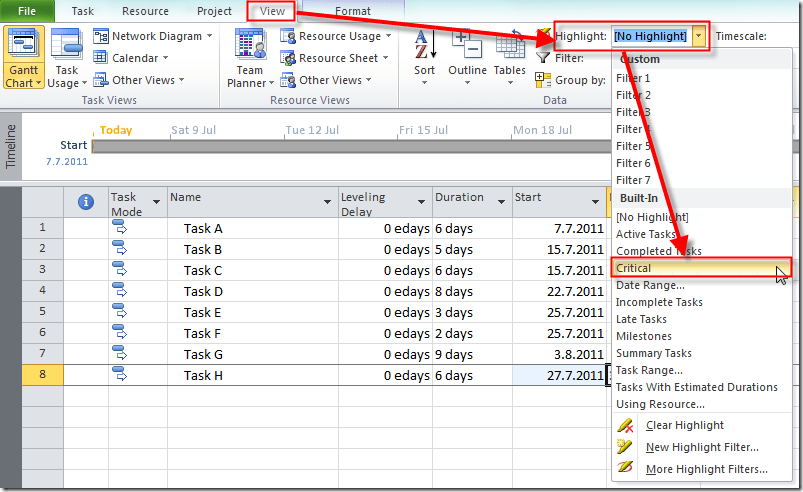

Where is the Critical Path?

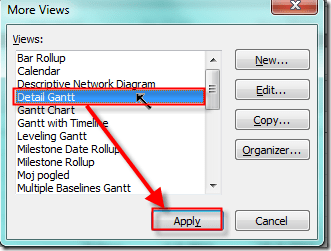

and then choose Detail Gantt:


I will get:


To get better look I will choose Entire Project in the Zoom group:


and I will get:

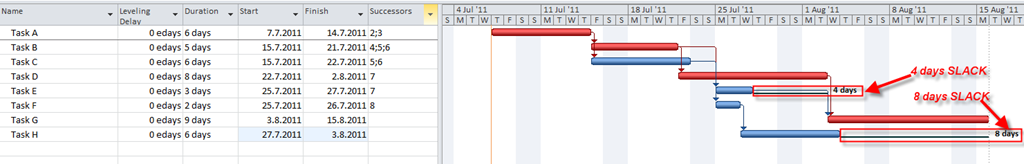

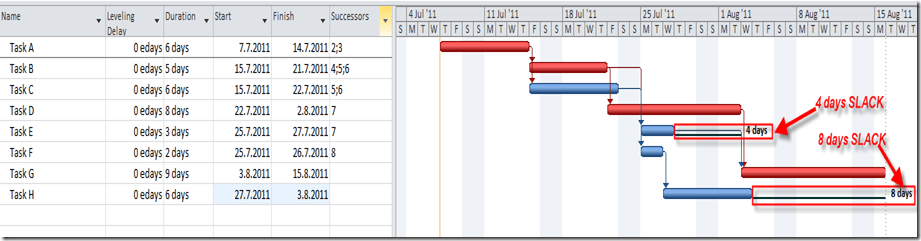

Red Tasks are on the Critical Path. Task E has 4 days SLACK (e.g. it can be late 4 days without delaying the whole Project). Task H has 8 days SLACK. Or, Task C + Task E can have totally 4 days SLACK, and Task C + Task F + Task H can have totally 8 days SLACK.

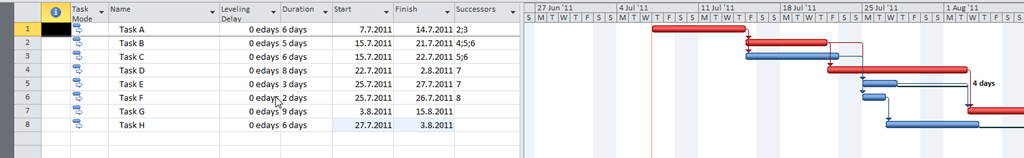

Now, I want to see on the left portion of the screen tasks on the CRITICAL PATH.


and I will get:

image¸

Tasks on the Critical Path are yellow now.

And finally, I will show you how can you get a picture in MS PROJECT 2010 similarly like in my example (first picture in this post).

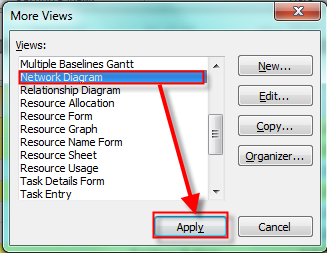

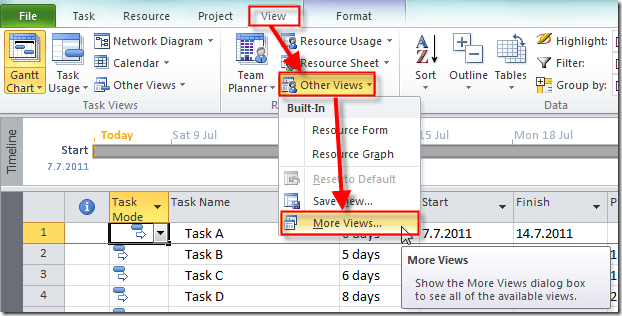

and then I will choose Network Diagram:

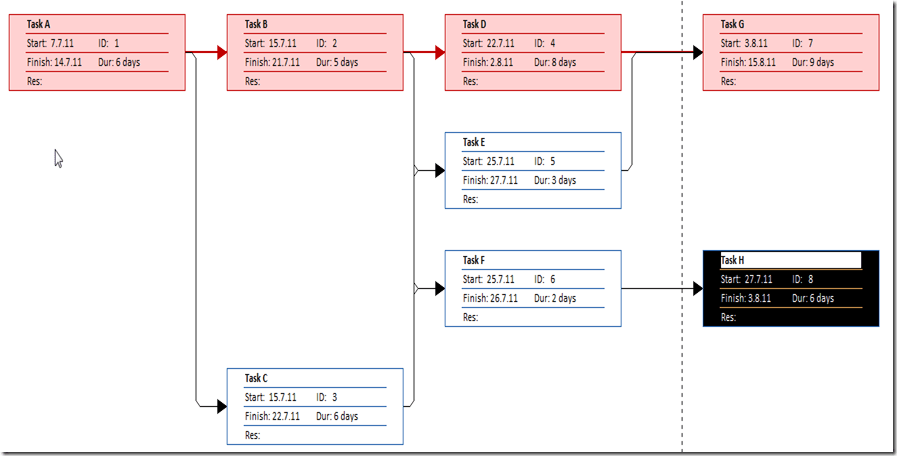

and I will get:


Red boxes represent task on the CRITICAL PATH!

DO NOT FORGET! CRITICAL PATH IS PATH WITH THE LONGEST DURATION, AND TASKS ON THE CRITICAL PATH SHOUD NOT BE LATE! iF THEY DO, THE WHOLE PROJECT WILL BE LATE!
