Changing max units field in Assign Resources window in MS PROJECT 2013

Hi,

this is my last post for this year. I will show you what is happening when you change Units in Assign Resource field in MS PROJECT 2013!

First, I’m going to create new Project with only one Task:


and I will create one Resource:


This mean that John can work only 100% of his capacity per day (8 hours per day in my example) or otherwise he will be over allocated.

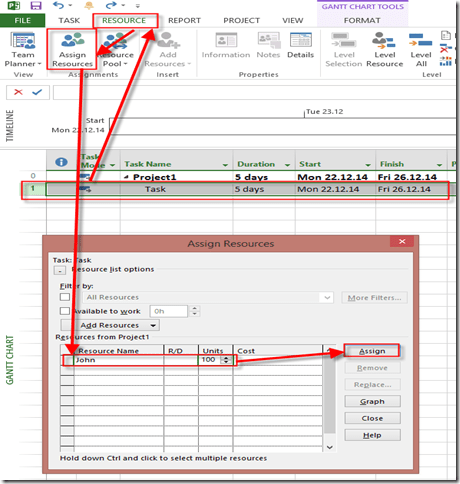

Now I’m going to assign John to the Task:




Let’s see Resource Usage View:


As you can see John will work 40 hours (8 hours per day from Monday to Friday)

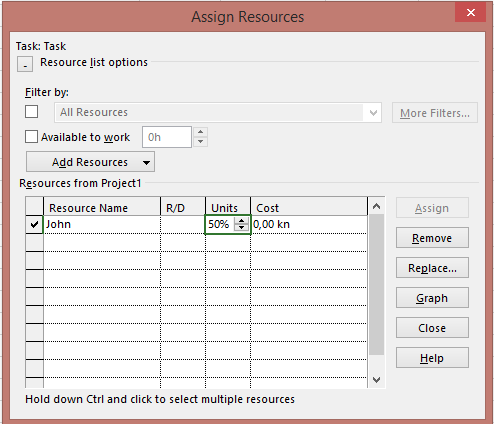

Now suppose that I change my mind in a way that I do not want John to work 100% but only 50% for this Task.

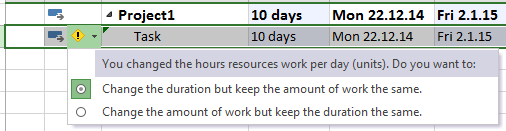

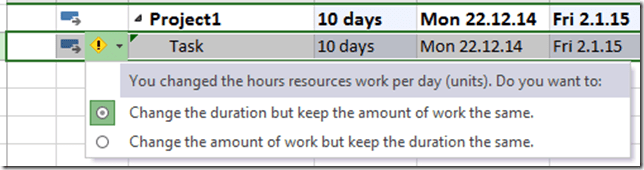

I will get this:


If I use firs option: “Change the duration but keep the amount of work the same” I’ll get:


Let’s see Resource Usage View again:


As you can see for the Task John need 40 hours to complete it. But he will work only 50% per day (4 hours), and it will take 10 days instead of 5 days.

If I choose another option: “Change the amount of work but keep the duration the same” I’ll get:


You can see that Duration remains the same. But, let’s look at the Resource Usage View again:


As you can see Duration is 5 days, but because John has to work 50%  (4 hours per day) he need only 20 hours (5 days * 4 hours per day) for entire work to be done.

To conclude if you increase or decrease Units field in Assign Resource window you must now why are you doing it. and there are only two reasons. You want to change duration for the Task, or hours.



Dear Blog readers,

I wish you a wonderful New Year 2015. I will keep write a Post per week, and answer all your questions as soon as I can.



Best Regards,

Nenad

Advertisements

About Nenad Trajkovski

Location: Zagreb, Croatia Occupation: Project Manager Interests: Project Management and MS PROJECT He was born in Zagreb, Croatia at 1963. After completing his college he started working on projects in different business areas (banking, manufacturing, automotive industry, distribution, oil companies, etc.) developing and implementing ERP systems into different companies. He has got a lot of experience working with people in different business processes and also possesses great knowledge in information technologies and financial services. Today he works as a business consultant, adn Project Manager in PERPETUUM MOBILE d.o.o. Zagreb. He is a regular lecturer for Project Management in MS Innovation Center in Varaždin, Logosoft Sarajevo in Bosnia and Herzegovina and SEAVUS GROUP in Skopje Macedonia. He was named the best lecturer of WINDAYS 2008 while his lecture was also voted as the best. In addition, he was in TOP 10 lecturers at the MS SINERGY 2009 and MS VISIA 2009, 2010. Shares first place as the best lecturer of KulenDays 2009 and 2010 and PMI Conference 2009 in Zagreb. He is also a regular lecturer in the MS Community. He is a Certified Accountant and a PMP (Project Manager Professional) and a PMI-RMP (Risk Manager Professional), MCP, MCT, and Microsoft Certified Technical Specialist - Microsoft Project 2010. From 01.01.2012 awarded with MVP (Microsoft Most Valuable Proffesional - Microsoft Project)!
This entry was posted in MICROSOFT PROJECT, Microsoft PRoject 2010, Microsoft Project 2013, Microsoft SharePoint, PMI, PRoject Management and tagged , , , , , . Bookmark the permalink.

5 Responses to Changing max units field in Assign Resources window in MS PROJECT 2013

  1. premkumar says:

    Dear Nenad,

    Glad to find your site and I thought of requesting your assistance ! It would be great, if you clarify my queries on below !

    I have a question on below issue ! Hope I will get assistance on how to get the desired result !

    In Below Scenario, i am trying to face a situation which i could not solve !

    Case Study:
    Need to create a task “Paint the wall”.
    I would expect this task to be completed by 24 hours.
    I would expect the Start Date to be Jan 7, 2015 (Wednesday)
    I have 3 resources with below constraints.
    A (with max unit = 50%). i.e., A can work only 4 hours daily
    B (with max unit = 50%). i.e., B can work only 4 hours daily
    C (with max unit = 25%). i.e., C can work only 2 hours daily
    Also, C cannot work on Jan 8 and Jan 9. (in general, C is not available on Thursday and Fridays always)
    I would like to implement the above in Project 2013, such that, resources are effectively utilized such that, we can complete this task (“paint the wall”) with less number of days !

    Expectation1:
    If I assign Resource A alone, I would expect the work (24hours) to be completed in 6 working days (Jan 14th) (note: Resource A works 4 hours daily. Hence 24 hours work will be completed in 6 working days)

    If I assign Resource A, B and C, I would expect the work (24 hours) to be completed by Jan 9th.
    (note:
    On Jan 7th, 2015 – i expected all 3 resources work. Hence total hours is 4+4+2 = 10 hrs
    On Jan 8th, 2015 – Since resource3 can’t work, Resource1 and Resoure2 will work 4+4 = 8 hrs
    On Jan 9th, 2015 – Since resource3 can’t work, Resource1 and Resoure2 will work 3+3 = 6 hrs
    Requesting your assistance on how the above can be done in ms project 2013. As I could not get the expected result of above case !!

    In general, I am expecting ms project to calculate smartly, when I add/remove resources on this task. (like, if I have 6 resources (100%) assigned, I would expect 24 hrs work to be completed on same day itself – Jan 7th itself. Similarly, if have 6 resources (50%) assigned, I would expect 24 hours to be completed in 2 days ie., work to be completed by Jan 8th itself).

    Hope I have explained my query clearly

    • Nenad Trajkovski says:

      Read my latest Blog Post it is all about your Problem!

      • Premkumar says:

        Mind Blowing — to see https://ntrajkovski.com/2015/01/07/duration-units-work-and-schedule-in-ms-project-2013-how-are-they-linked-and-some-tips-and-tricks/#comment-13104

        Very sad that, i just didnt noticed this reply till date (Nov 2016 🙂 ).. I had posted my query in youtube (https://www.youtube.com/watch?v=P9fhXiejG7I) as well 🙂 to ask for help.
        Now i got it. You are Genius..

        Will keep visiting your site !

        Thanks Nenad for the great help !

  2. luckyeso says:

    Compliments of the season to you Nenad, Thanks for the post. It was quite informative. Still looking forward to your response on the S curve illustration using MS Project.

    Regards

    Lucky Esokun

  3. luckyeso says:

    Compliments of the season Nenad,

    Thanks for the post. quite informing. Still looking forward to your response of S curve illustration with MS Project.

    Thanks
