Customizing fields and specifying Lookup Values for a Custom Fields



Hi,

in this Post I will explain how to use custom fields in MS PROJECT 2010.

There are nine types of Custom Fields in MS PROJECT 2010:

  1. Cost. Use this type when you need a field in which you will put cost in currency. There is up to 10 Cost type fields.
  2. Date. Use this type when you need a field in which you will put date. There is up to 10 Date type fields.
  3. Duration. Use this type when you need a field in which you will put duration expressed in time. There is up to 10 Duration type fields.
  4. Start. Use this type when you need a field in which you will put start time expressed as a date. There is up to 10 Start type fields. Those fields are used for Interim Plans in MS PROJECT 2010, so my advice is that you should use Date type instead.
  5. Finish. Use this type when you need a field in which you will put finish time expressed as a date. There is up to 10 Finish type fields. Those fields are used for Interim Plans in MS PROJECT 2010, so my advice is that you should use Date type instead.
  6. Text. Use this type when you need a field in which you will put text up to 255 characters. There is up to 30 Text type fields.
  7. Flag. Use this type when you need a field in which you will put YES/NO flag. There is up to 20 Flag type fields.
  8. Number. Use this type when you need a field in which you will put numeric data. There is up to 20 Number type fields.
  9. Outline Code. There is up to 10 Outline Code type fields. I will explain them later in my next Post.

Custom fields can be applied to Resources or to Task. For my first example, suppose that you need information about State from which your Resource is!

I will create Custom Text field:


and I will get:


Now, I will choose Lookup (see the Picture above), and I will get:


I have entered some States (just for example), and now I will click at the + Sign as shown at the Picture above:


I choose that Display order will be Ascending, and I do not want to add any further States in this field. If I put check mark in Allow additional items to be entered into the fields, then user can simply add any value (text) in this field on the screen (which I will explain next), and in that case this value (text) will be added in lookup table.

I am from Croatia, so most of my Resources are from it, and I will make Croatia as default Value:

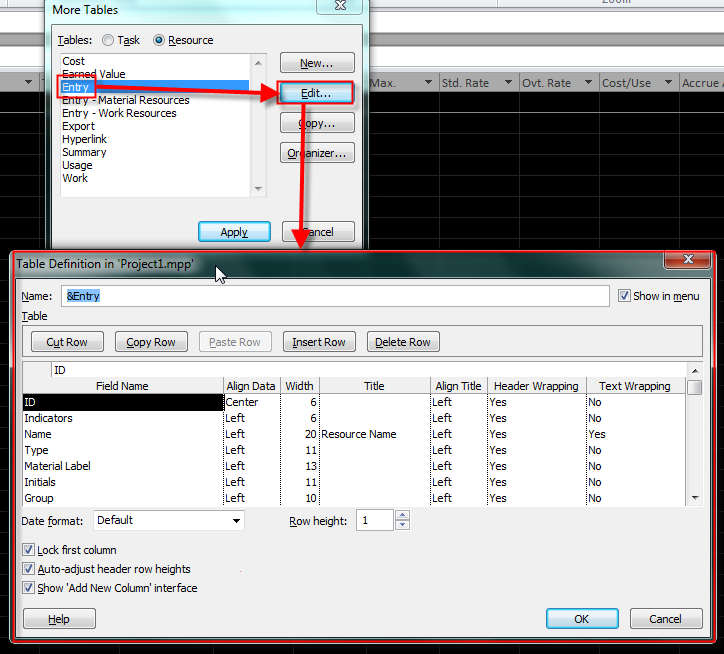

OK. Now, I am going to modify Entry Table, for Resources:


and then:

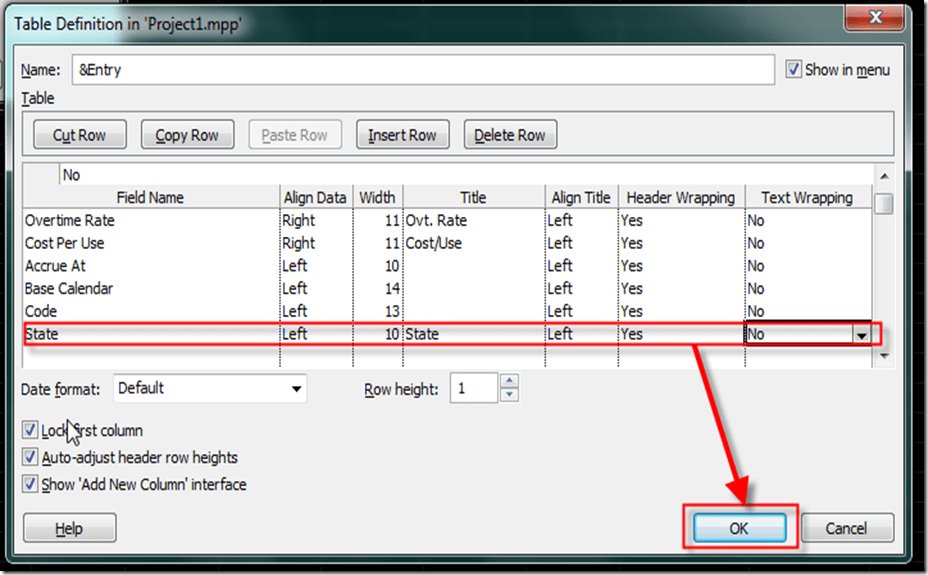

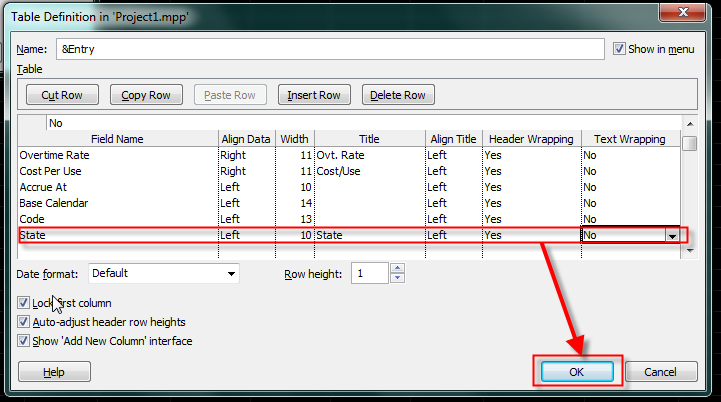

I will scroll down to the row below last one with data and I will add State field in the Entry table:


I will fill all other Columns:

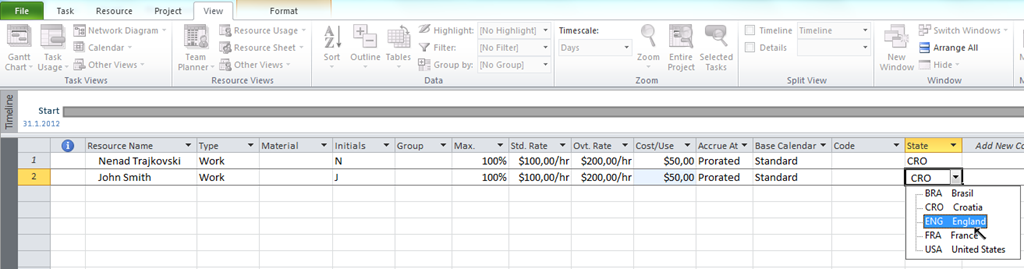

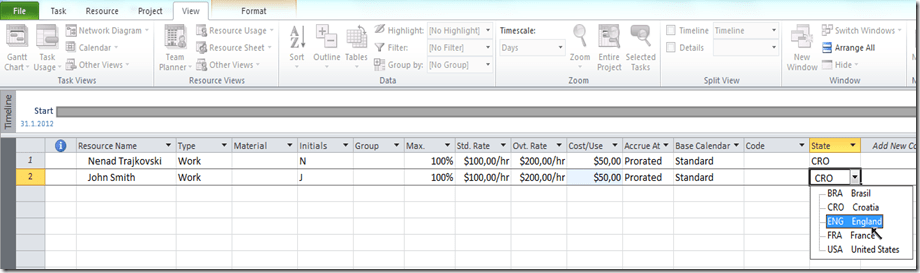

Now let’s see what we get:


It is simple, isn’t it. I have applied custom Text field. I could apply any other type of custom field in the same way, except Outline code.

My next Blog post will be about that!



Regards!
