How to work with Outline Codes in MS Project 2010?



Hi,

in my last Post I have explained how to use custom fields in MS PROJECT 2010. One of custom field type is Outline Code. Suppose that you have resources group by skills like this:

  • Developers  (101 – C# Developer, 102 – SQL Developer, 103 – SharePoint Developer)
  • Consultants (201 – Finance Consultant, 202 – Fixed Assets Consultant, 203 – Production Consultant)
  • Testers (301 – Database Tester, 302 – Application Tester, 303 – Report Tester)
  • System Engineers (401 – MS SQL System Engineer, 402 – SharePoint System Engineer, 403 – BI System Engineer)

You want to assign one or more group of resources to each of your Resource.

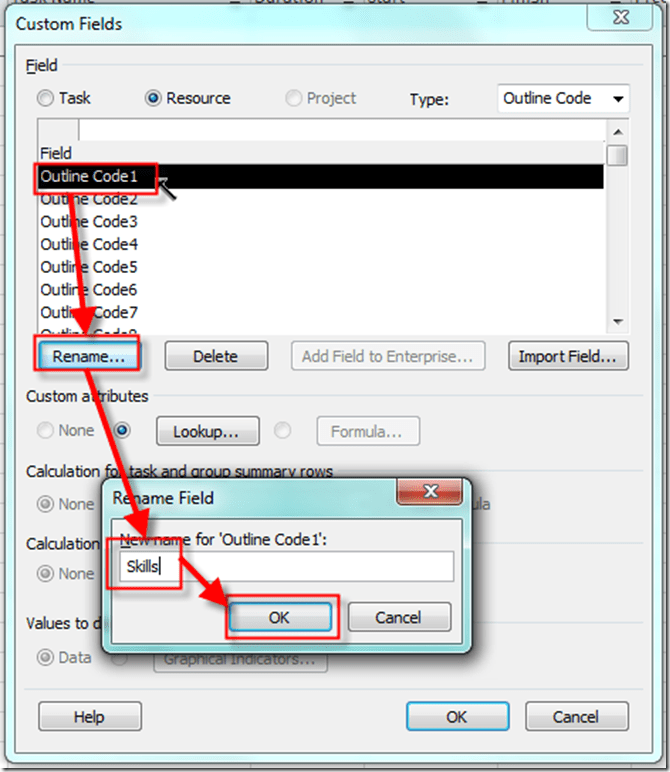

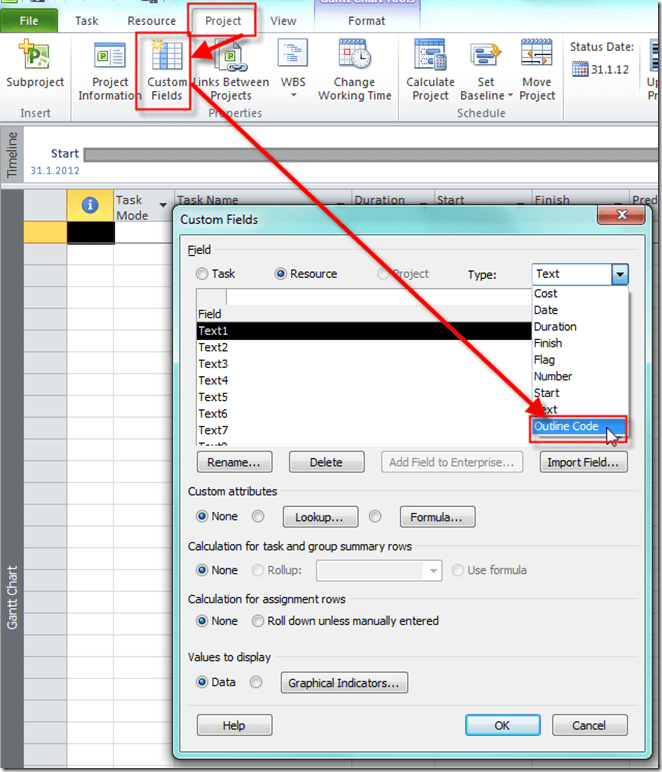

I will create brand new Custom Field:


and I will get:

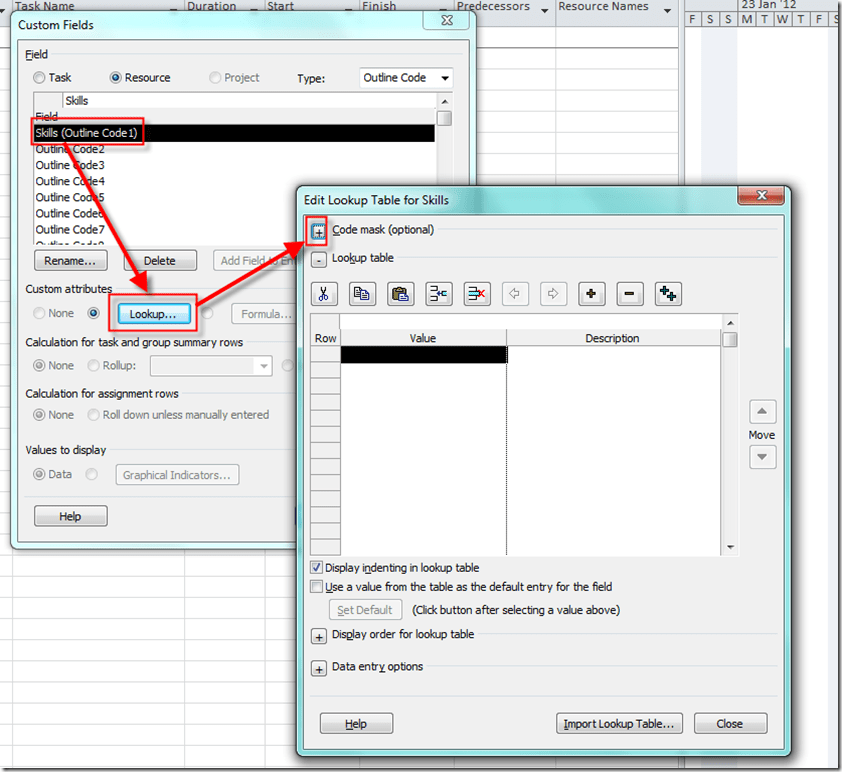

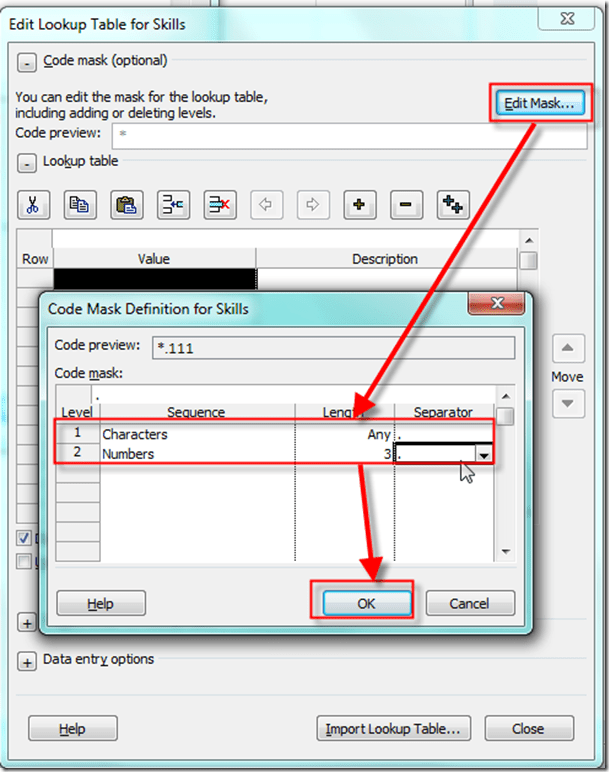

Now I have to define Code Mask:


and I will get:


Notice that I choose to have two different levels: First is for Skill type (for example: Developers), and second for the Skill (for example : C# Developer)

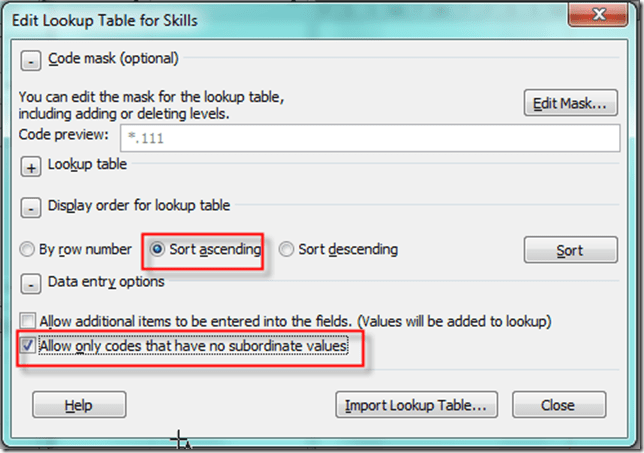

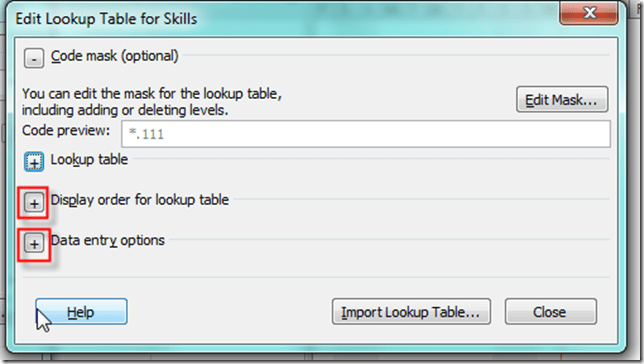

I do not want that User adds any new Values for my Skills and I do not want to choose Skill type, but only specific Skill!


and I will get:

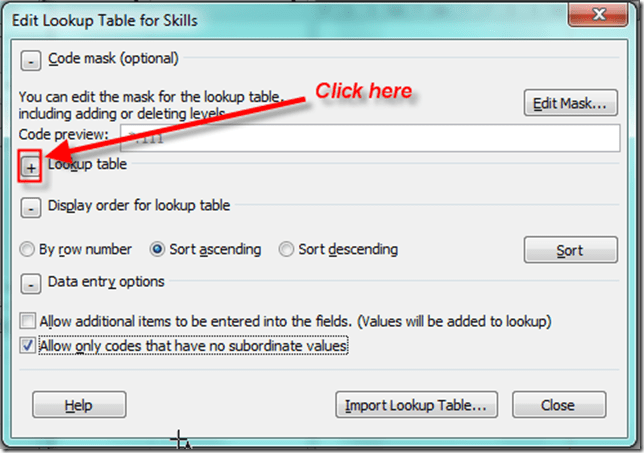

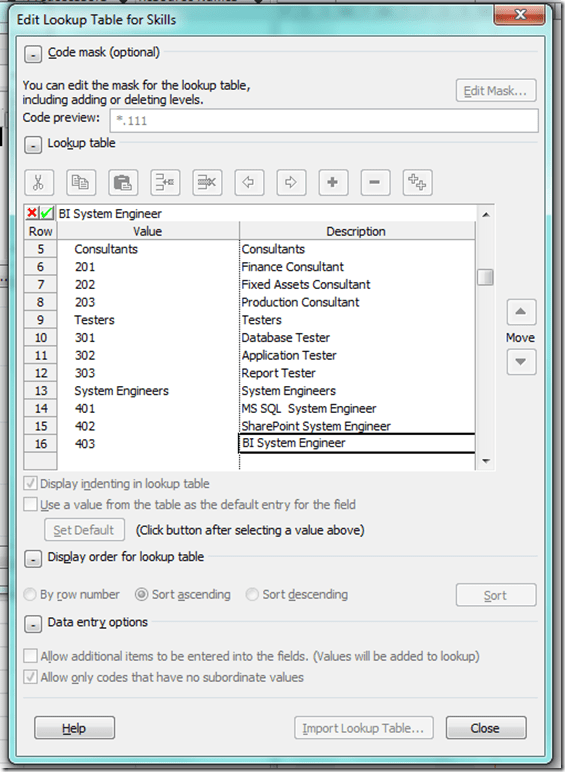

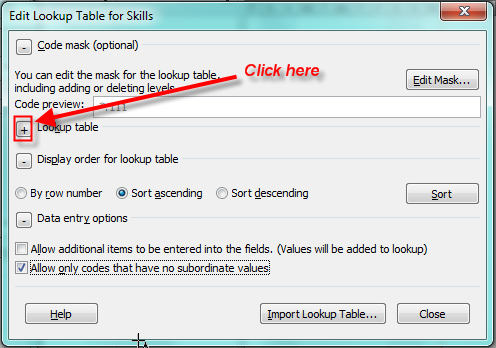

I choose to order data in Ascending way, and to allow only codes that have no subordinate values (e.g, only Skills). Now is the time to put Values for the Custom Code:


and I will get:

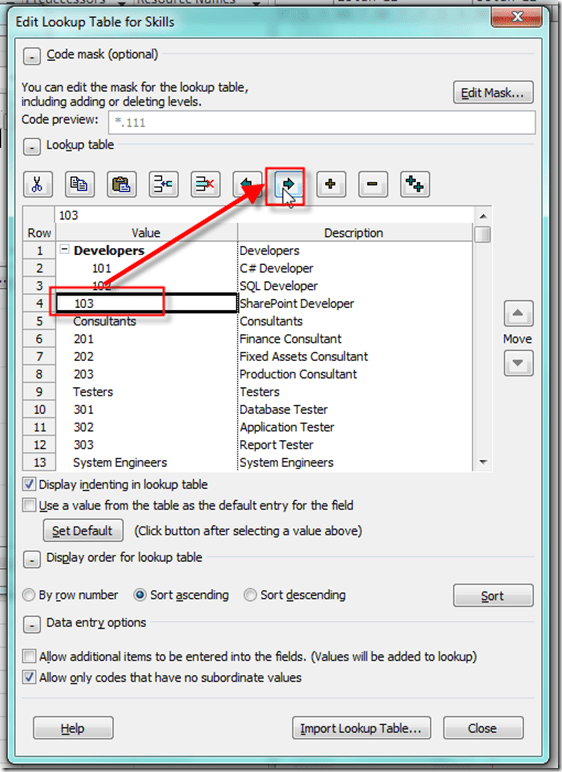

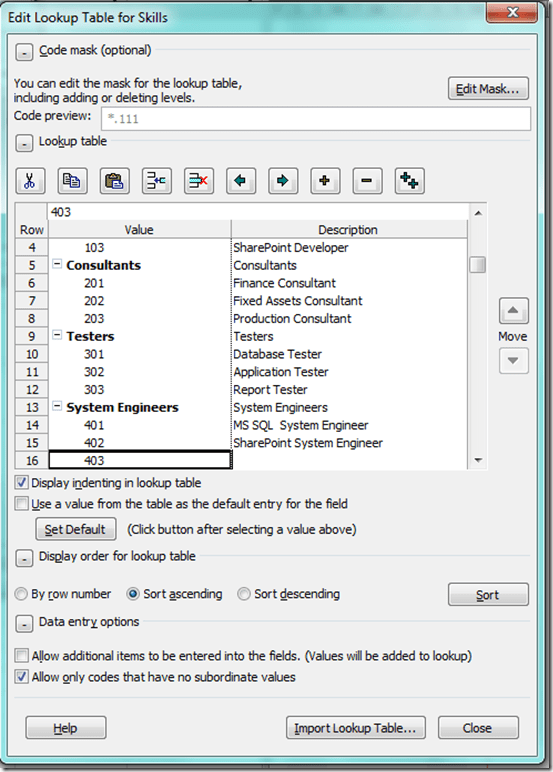

I will Outdent all rows with Skills (101,102,103,….,401,402,403):


and, when I will finish I, will get:

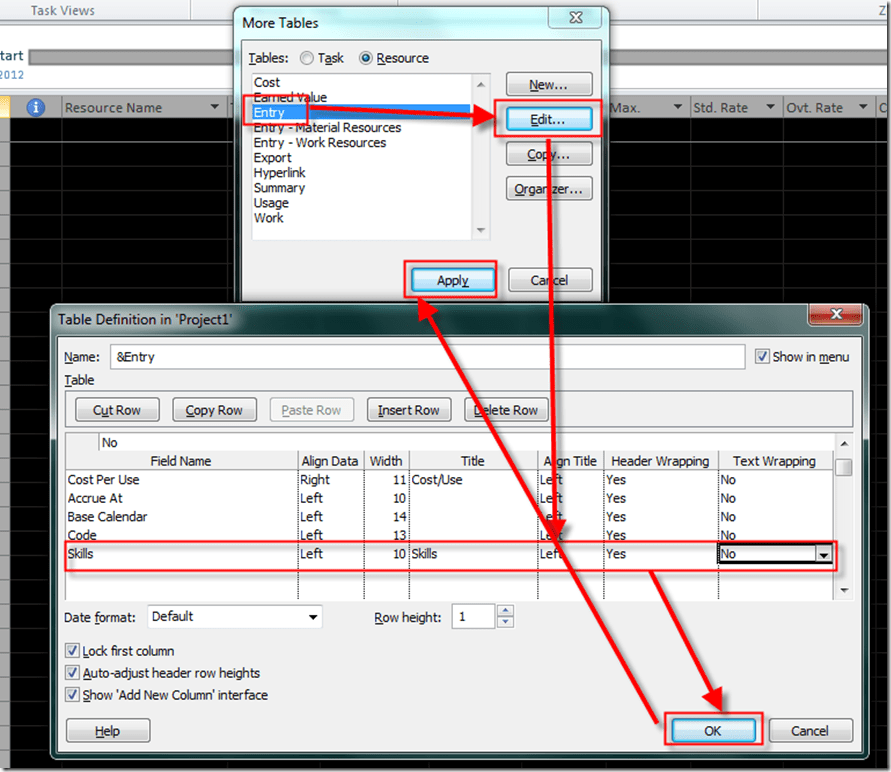

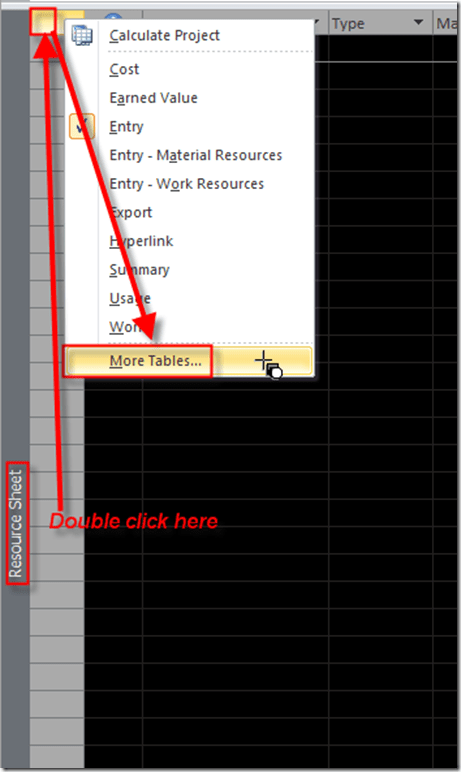

OK. I will now change Entry Table for Resources:


and then:


and I will get:

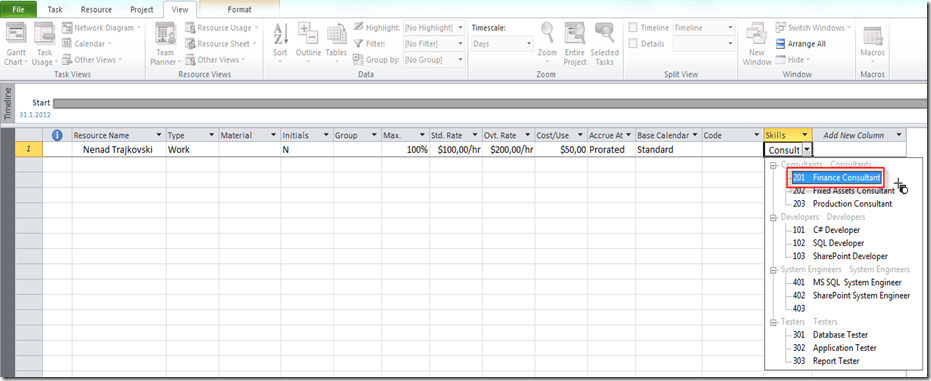

Now I will put a Resource in this Table:


and that’s it!



Regards!
