Working with Graphical Indicators in MS PROJECT 2010



Hi,

in this Post I’ll show you how to use graphical Indicators in MS PROJECT 2010. Here is The Scenario:

  • I have may Project Baseline (and this is my Project Plan)
  • I am tracking the Project Progress
  • If my Actual Task Costs are aligned with my Baseline Costs I want to see Green Light in My Gantt Chart View (Entry Table)
  • If my Actual Task Costs are exceeding my Baseline Costs up to $1.000, I want to see Yellow Light in My Gantt Chart View (Entry Table)
  • If my Actual Task Costs are exceeding my Baseline Costs more than to $1.000, I want to see Red Light in My Gantt Chart View (Entry Table)

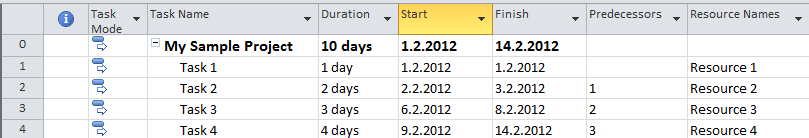

Here is my Project:


and My Resources:

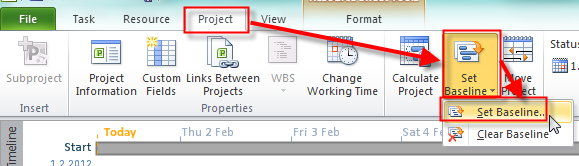

Now I will save a Baseline:

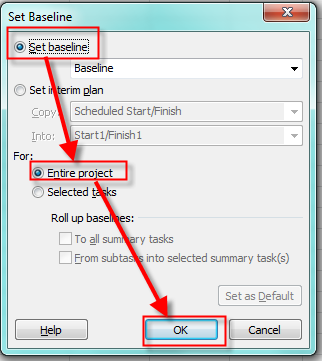

and:

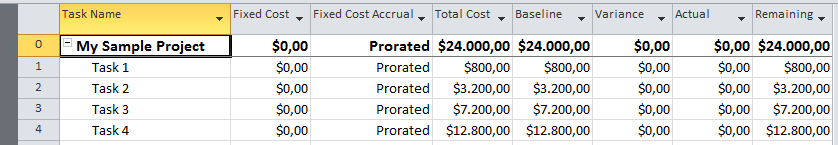

when I apply the Cost Table I will get:


Now, I am going to create Custom Field for Graphical indicator:


and then:


I will click at Formula button again, and I will get:

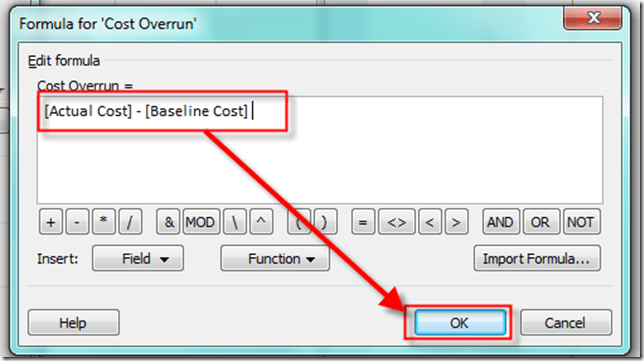

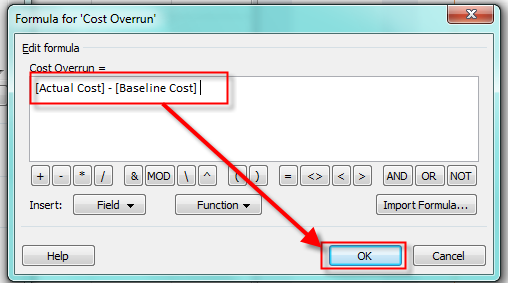

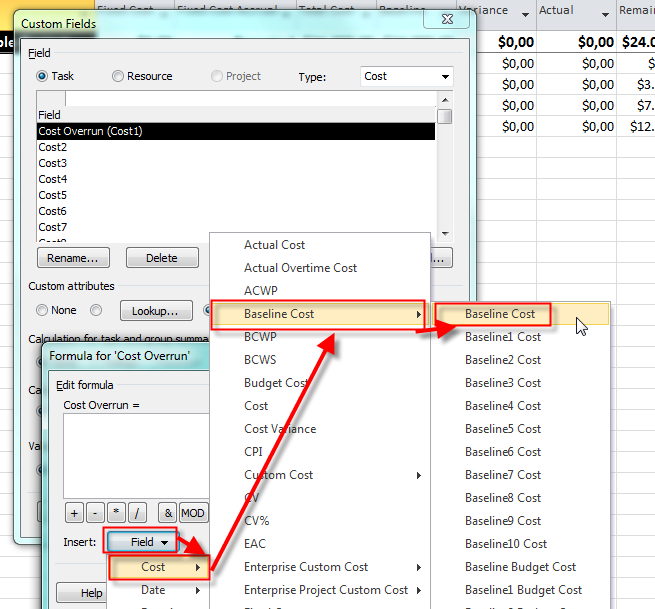

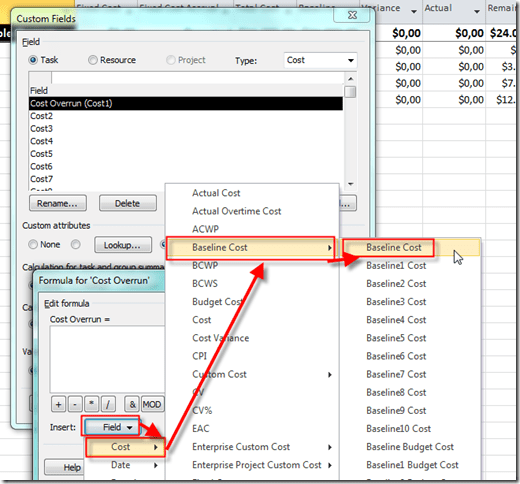

Now I will choose the minus sign, and Actual Cost, and then Baseline Cost:


and I will get:

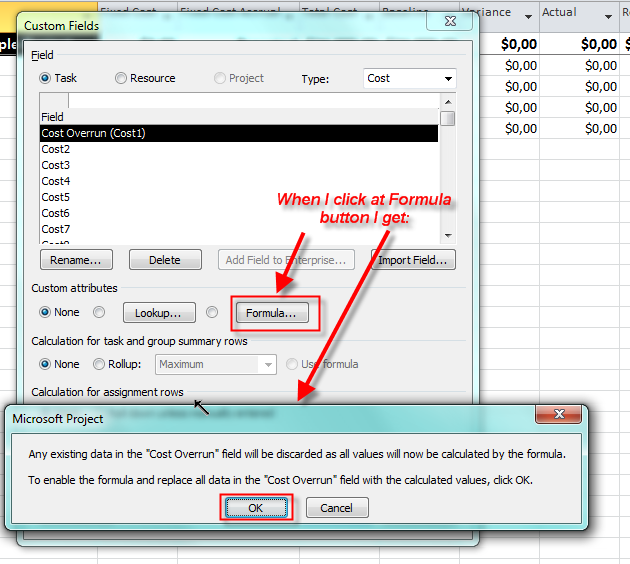

I get a warning message, and I will click OK on that:

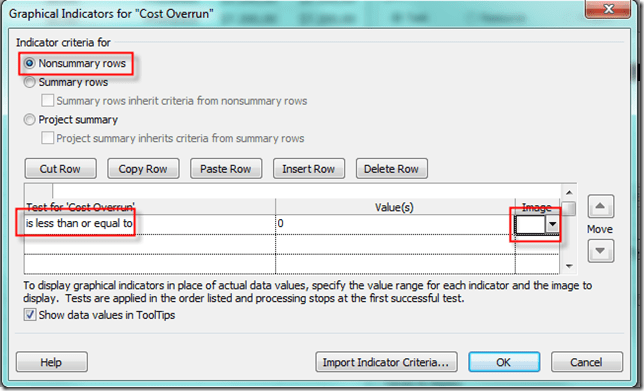

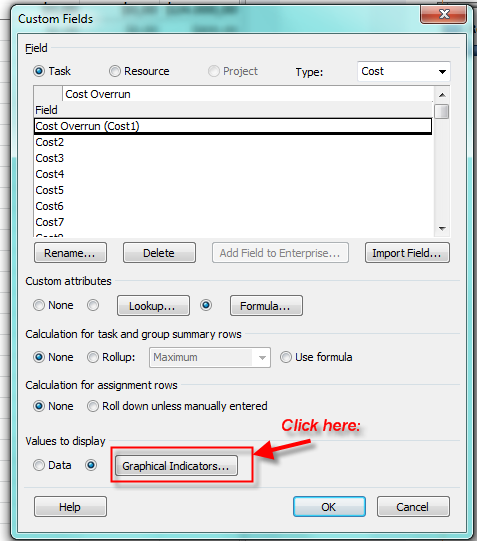

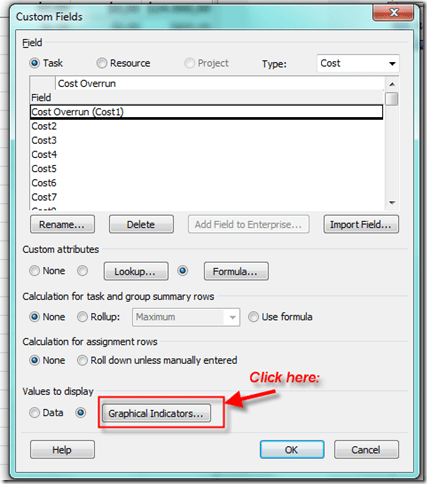

Now for this field I will arrange Graphical Indicator:

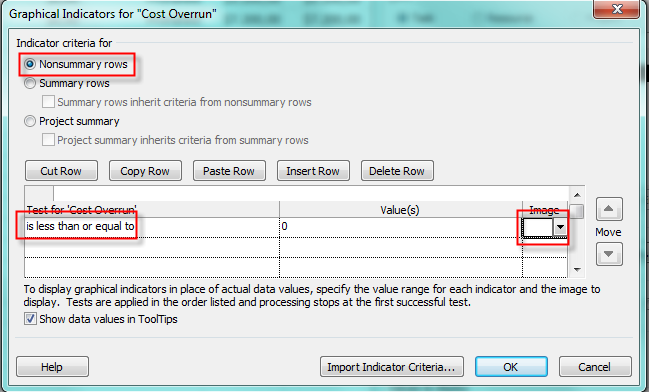

and then:

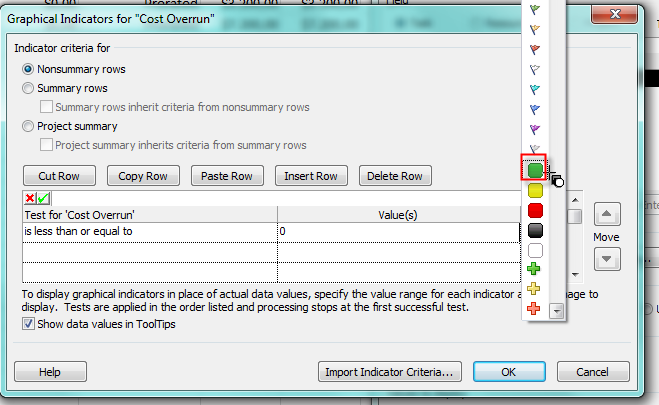

When I click on Image I will choose a Green Light:

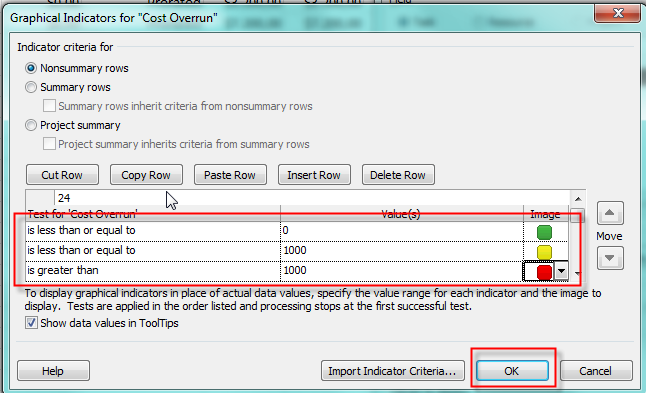

no I will finish remaining two rows:

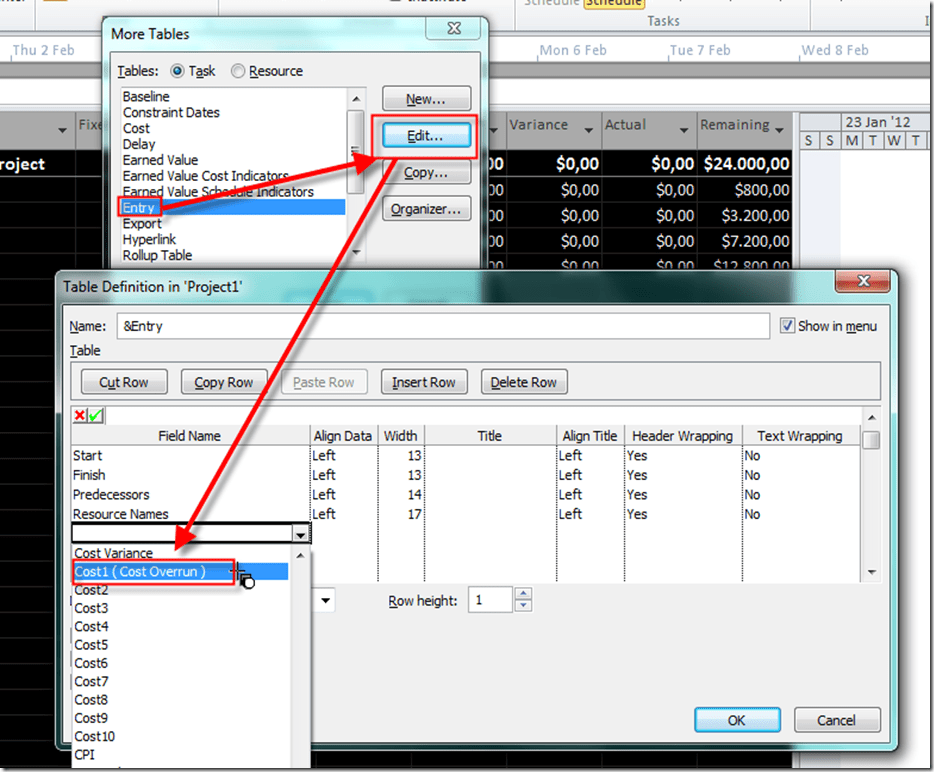

OK! Now I will put this Custom Field to the Entry table:


and then:


and:


Let’s look at the Gantt Chart View:


Since I didn’t enter any “Actuals” All Task are Green!

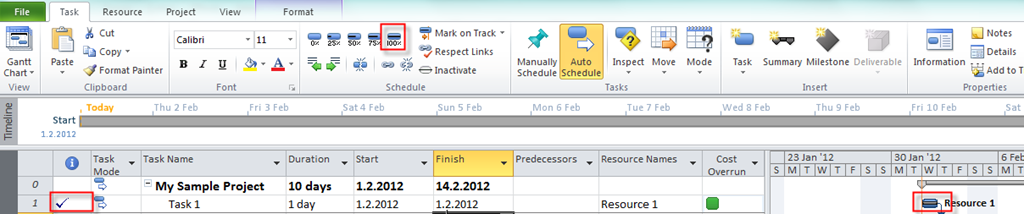

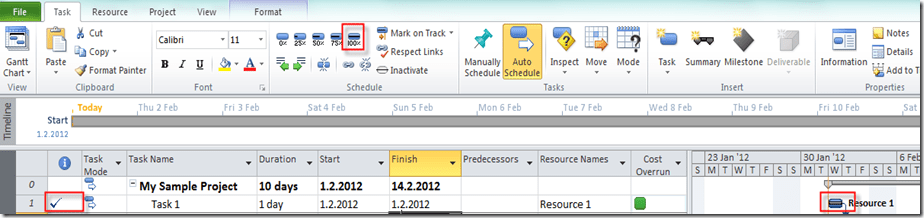

Now I will make Task1 as 100% Complete:


Since everything went fine with Task1 Graphical Indicator remains Green!

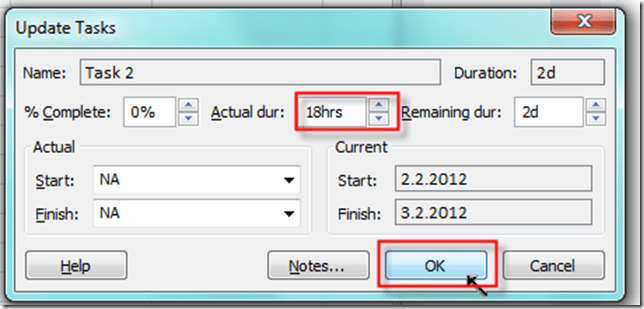

I will say that it was spent 18 hours for the Task 2:


and:


and I will get:


Task 2 has a Baseline Cost: 2 days * 8 hours per day * $200 per hour = $3.200. Actual cost = 18 hours * $200 per hour = $3.600. Since Actual Cost – Baseline cost = $3.600 – $ 3.200 = $400, and it is less or equal to $1.000, the Yellow indicator appears!

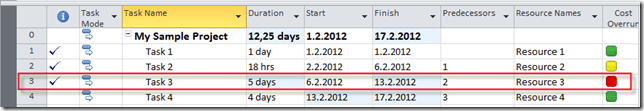

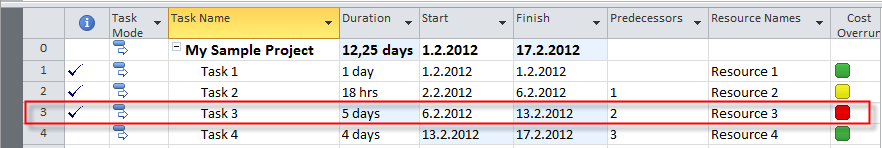

On the same way, I will say that it was spent 5 days for the Task 3, and after that I will get:


Task 2 has a Baseline Cost: 3 days * 8 hours per day * $300 per hour = $7.200. Actual cost = 5 days * 8 hours per day * $300 per hour = $12.600. Since Actual Cost – Baseline cost = $12.000 – $ 7.200 = $4.800, and it is greater then $1.000, the Red indicator appears!

You can see costs (Baseline, Actual, and Variance) in Cost Table:


That’s it!

Regards!
